Flush trimming edge veneer on straight edges

When working with wood, it is often necessary to work on edges and flush trim edge veneers. This illustrated guide describes how to proceed when using the edge router to ensure that clean, flush edges are produced. Once the test routing has been carried out, absolute precision is key.

Please note: These illustrated guides are not intended to replace operating manuals or safety instructions!

Description

When working with wooden materials, carpenters are repeatedly faced with the challenge of flush trimming concealed edges, feature edges and edge veneers. In the past, concealed edges, feature edges and edge veneers were flush trimmed using a planer or firmer chisel; however, this is no longer cost-effective. Today, specialised stationary tools are available for machining and routing protruding edge veneers and feature edges. However, due to their high acquisition costs, these are only economically viable for series production. With the Festool edge router, users are offered a cost-effective alternative that they can use to produce clean results in no time. This illustrated guide outlines the steps for machining edge veneers using the rod edge router. This tool has been specially designed for edge trimming and is ideal for daily use thanks to its extremely low weight.

Tools/accessories

The following tools and accessories are recommended for use in this application example:

Preparation/set-up

The edge router is set up as follows:

First, insert the HM flush cutter into the edge router.

Next, hold the rod edge router against the edge veneer/feature edge to be routed and turn the cutter outwards until it can machine the edge veneer/feature edge across its entire width.

+
Finally, connect the mobile dust extractor to the extractor connector on the edge router in order to flush trim the edge veneer without generating dust.

+

Procedure

For most routing work, a test rout should be carried out before starting, in order to ensure that the settings are correct and that routing can be carried out successfully as planned. This test rout should always be carried out using a test piece and never on the original workpiece.

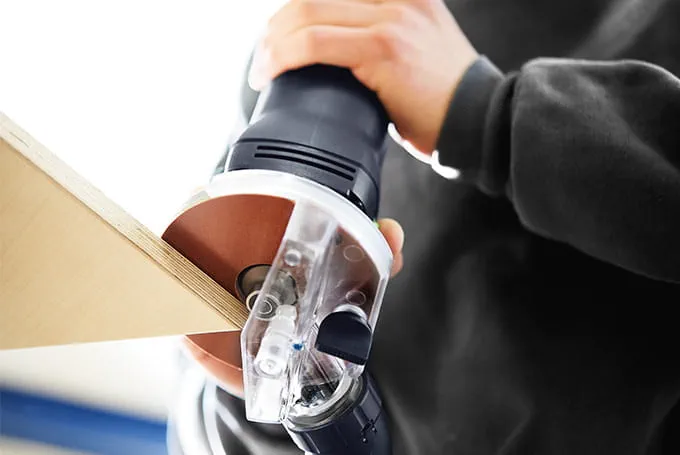

The edge router is positioned on the workpiece first. During this step, the cutter should not touch the feature edge.

+
Next, the router is switched on and moved against the edge veneer.

The edge of the panel to be machined must be removed completely. When the end of the panel is reached, switch off the edge router.

When flush trimming edge veneers, ensure that work is carried out in reverse direction; this means that the cutter is moved in the direction in which the cutter is rotating.

+
